The Infuser Aviator’s Successor
The Infuser Aviator® model is no longer available for purchase or leasing, and has been replaced by the Infuser Flow Master®. If you’re needing support and/or maintenance for your existing Infuser Aviator® please contact us.
The Leading Semi-Automatic Injection System
Begin Your Advancement to the Highest Level of Molding

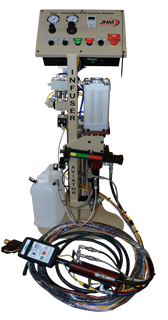

The Infuser Aviator® is a semi-automatic RTM injection system providing state-of-the-art features and innovation to exceed your daily production demands. The tried-and-tested semi-automatic features of the Infuser Aviator’s will instantly improve your bottom line with less material waste and improved mold quality!
Infuser Aviator® Features
- Automatic Injections
- Automate your injections with the Infuser Aviator’s auto fill technology. The Infuser Aviator® will precisely fill the mold using a pre-configured injection count, allowing for one-button injections.
- Mold Link
- Speed up production with pre-configured mold recipes—simply press “start” with the tag on the injection gun’s remote! Mold link is exclusive to the Infuser Series allowing for one-button injections! Place the mold tag on the injection gun’s sensor and the Infuser Aviator knows exactly how to inject the mold.
- Real-time Flow Indication
- Optimize process repeatability with the Infuser Aviator® real-time flow rate indication. The real-time flow rate indication allows the operator to monitor and control the flow rate throughout the injection process, ensuring a consistent injection each time.
- Gel Time Alarm
- Eliminate the risk of gelling up the injection gun! Infuser Aviator’s gel time alarm eliminates the risk of resin hardening within the injection gun by alerting the operator post-injection that a flush is required.
- Infinite Variable Catalyst Ratio
- Infuser Aviator’s infinite variable catalyst ratio (0.5% to 3%) allows for precise control over configuring the catalyst to resin ratios speeding up cure times.
- Fully Upgradeable
- The modular design of the Infuser PRG® allows for easy integration with future innovations within the Infuser Series. Upgrade your injection system without having to purchase a completely new one!
Infuser Aviator® Models
Standard two component RTM injection system, designed for polyester and vinylester resins. Equipped with a 100cc resin pump and infinitely adjustable 4.5cc stainless steel catalyst pump.
Infuser Aviator® Specifications:
- 100cc Resin pump
- 4.5cc Stainless steel catalyst pump
- 25 ft. Industrial grade hose set
- 5 gal. Stainless steel solvent tank
- Stainless steel braided catalyst lines
- Resin inlet hose with filter—suitable for 55 gallon drums
- Automatic resin recirculation valves
- Dual stream mix head with static mixer element
- Infinite adjustable catalyst ratio
- Emergency stop
- Mold Link
- Remote Mold Link controller
- Configurable injection pressure
- Configurable solvent flush
- Real time flow rate monitoring
- Elapsed injection time monitoring
- Full instrumentation control panel
Two component RTM injection system design for epoxy and urethane resins. Equipped with a 100cc resin pump and a 50cc hardener. Along with moisture locking hoses as standard—preventing reaction with environmental sensitive hardeners.
Infuser Aviator® EPX Specifications:
- 100cc Resin pump
- 50cc Hardener pump with adjustable ratio
- 25 ft. Industrial grade hose set
- 5 gal. Stainless steel solvent tank
- Resin inlet hose with filter—suitable for 55 gallon drums
- Automatic resin recirculation valves
- Dual stream mix head with static mixer element
- Emergency stop
- Mold Link
- Remote Mold Link controller
- Configurable injection pressure
- Configurable solvent flush
- Real time flow rate monitoring
- Elapsed injection time monitoring
- Full instrumentation control panel
Three component RTM injection system featuring a 100cc resin, 50cc hardener, and 4.5cc peroxide catalyst pump. The Infuser Aviator 3C is specifically designed to handle hybrid urethane/vinylester materials. Comes standard with moisture locking hoses—preventing reaction with environmental sensitive hardeners.
Infuser Aviator® 3C Specifications:
- 100cc Resin pump
- 50cc Hardener pump with adjustable ratio
- 4.5cc Stainless steel catalyst pump with adjustable ratio
- 25 ft. Industrial grade hose set
- 5 gal. Stainless steel solvent tank
- Stainless steel braided catalyst lines
- Resin inlet hose with filter—suitable for 55 gallon drums
- Automatic resin recirculation valves
- Dual stream mix head with static mixer element
- Emergency stop
- Mold Link
- Remote Mold Link controller
- Configurable injection pressure
- Configurable solvent flush
- Real time flow rate monitoring
- Elapsed injection time monitoring
- Full instrumentation control panel
